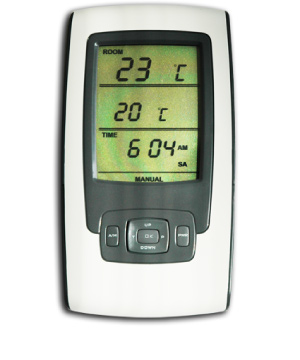

8000 series Thermostat

System Features

  • Interactive display makes programming easy.
  • Basic heater operation – simply a single button operation.
  • Wireless Radio Frequency and complies with Australian and New Zealand (C-Tick/RCM), United States (FCC) and Canada (IC) regulations.
  • Large easy to read backlit LCD screen.
  • Programmable heating levels to enhance comfort control.
  • Programmable fan operation for added comfort.
  • Full seven-day program capability, different schedules and temperature set-points may be selected for everyday to fit any schedule.
  • Set-points permanently held in memory and retained during power outages to maximise homeowner and installer convenience.
  • Configurable features:
    • °F or °C temperature display
    • 12 or 24 hour clock display
  • Customizing and Private Labelling available (depending on volume).
  • Operate with Millennium’s RF Millivolt System as well as the RF Modulating System offering maximum OEM flexibility.

Electrical Specifications

Battery Type: 2 x AA Alkaline Batteries

Transmission Frequency: 433.92 MHz

Operating Temperature: 0°C - 50°C

Operating Time: 12 months approx.(based on backlight operation of 10 secs. per day)

Activation Mechanism: Tactile Keypad (7 push buttons)
